Beschreibung

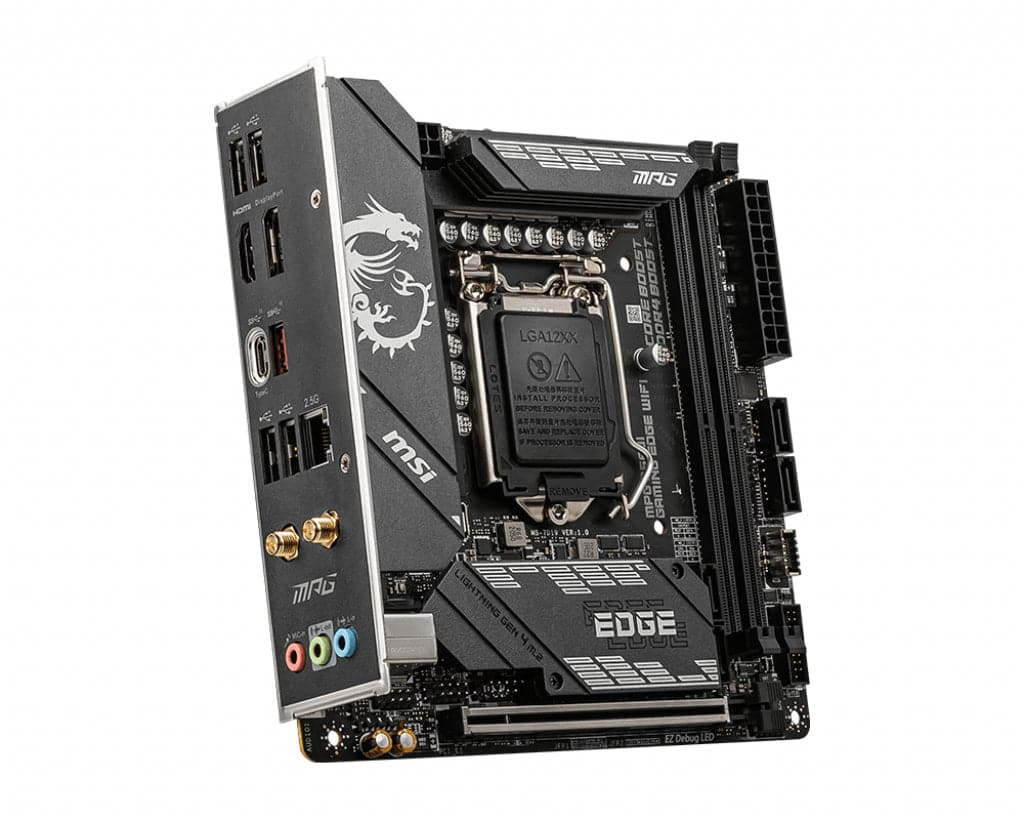

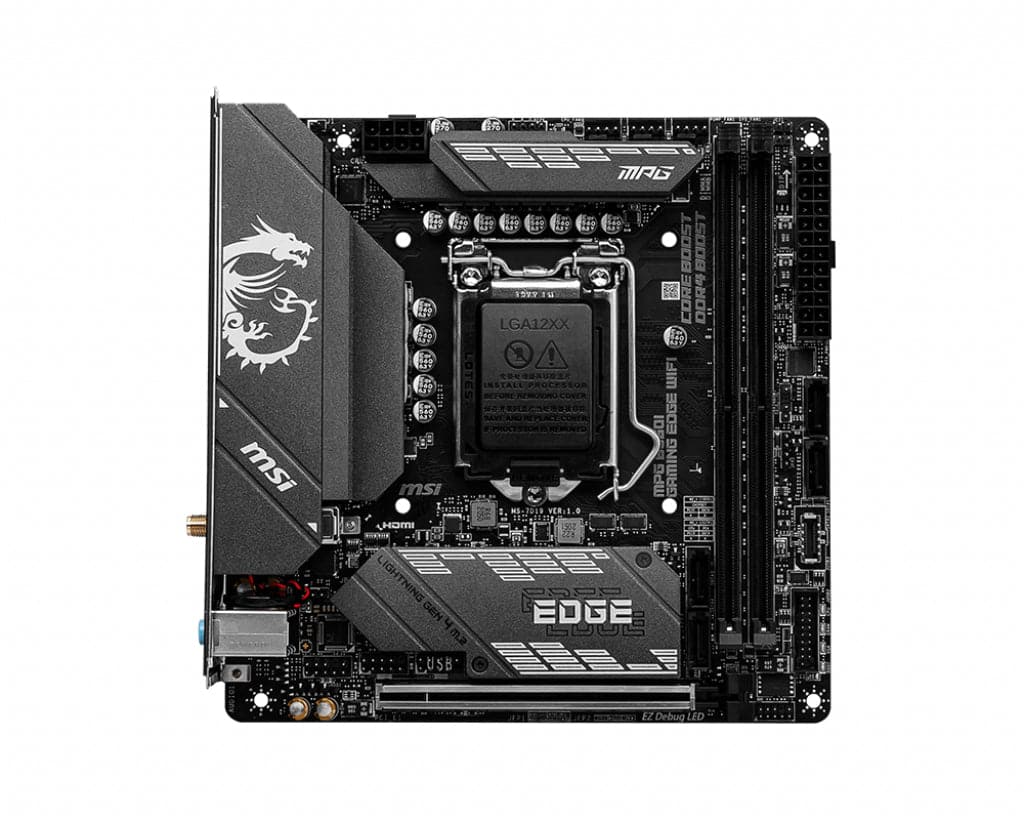

MSI MPG B560I Gaming Edge WLAN. Prozessorhersteller: Intel, Prozessorsockel: LGA 1200, Kompatible Prozessorserien: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Unterstützte Speichertypen: DDR4-SDRAM, Maximaler interner Speicher: 64 GB, Speichersteckplatztyp: DIMM. Unterstützte Speicherlaufwerksschnittstellen: M.2, SATA III, Unterstützte Datenspeicherlaufwerkstypen: HDD und SSD. Maximale Auflösung: 5120 x 3200 Pixel. HDMI-Version: 2.0b
Prozessorhersteller | Intel |
Prozessorsockel | LGA 1200 |
Kompatible Prozessorserien | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Unterstützte Speichertypen | DDR4 SDRAM |
Anzahl der Speichersteckplätze | 2 |
Maximaler interner Speicher | 64 GB |
Speichersteckplatztyp | DIMM |
Speicherkanäle | Doppelkanal |
Nicht fehlerkorrigierender Code | Ja |
Unterstützte Speichertaktraten | 2133,2666,2933,3200,4700,5200 MHz |
Unterstützte Speicherlaufwerksschnittstellen | M.2, SATA III |
Unterstützte Datenspeicherlaufwerkstypen | Festplatte und SSD |
Unterstützung für Parallelverarbeitungstechnologie | Nicht unterstützt |
Maximale Auflösung | 5120 x 3200 Pixel |
USB 2.0-Anschluss | 1 |
USB 3.2 Gen 1 (3.1 Gen 1)-Anschluss | 2 |
Anzahl der SATA III-Anschlüsse | 4 |
Audio-Buchse an der Vorderseite | Ja |
ATX-Steckdosenleiste (24 Pins) | Ja |
CPU-Lüfteranschluss | Ja |
EPS-Stromanschluss (8-polig) | Ja |
TPM-Anschluss | Ja |
12V-Netzstecker | Ja |
Header mit RGB-LED-Pins | Ja |
Anzahl der USB 2.0-Anschlüsse | 4 |
Anzahl der USB 3.2 Gen 2 (3.1 Gen 2) Typ-A-Anschlüsse | 1 |
Anzahl der USB 3.2 Gen 2 (3.1 Gen 2) Typ-C-Anschlüsse | 1 |
Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
Anzahl der HDMI-Anschlüsse | 1 |
HDMI-Version | 2,0b |
Anzahl der DisplayPorts | 1 |
DisplayPort-Version | 1.4 |
Ausgänge für Kopfhörer | 1 |
Mikrofoneingang | Ja |
W-lan | Ja |
Ethernet-LAN | Ja |
Ethernet-Schnittstellentyp | 2,5-Gigabit-Ethernet |
LAN-Check | Realtek RTL8125B |
Bester WLAN-Standard | Wi-Fi 6 (802.11ax) |
WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
WLAN-Controller-Modell | Intel Wi-Fi 6E AX210 |
Bluetooth | Ja |
Bluetooth-Version | 5.2 |
Komponente für | PC |
Motherboard-Formfaktor | Mini-ATX |
Motherboard-Chipsatzfamilie | Intel |
Motherboard-Chipsatz | Intel B560 |
Audio-Ausgabekanäle | 7.1 Kanäle |
Soundchip | Realtek ALC897 |
Anzahl der Befestigungslöcher | 4 |
Unterstützte Windows-Betriebssysteme | Windows 10 x64 |
PCI Express x16-Steckplätze | 1 |
Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS-Typ | UEFI-AMI |
CMOS-Jumper zurücksetzen | Ja |
Breite | 170 mm |
Tiefe | 170 mm |
